8-inch Access Control Facial Tablet（Newcapec）

Welcome

Home > INTELLIGENT TERMINAL > Identity Recognition Terminal > Face Scan Payment Terminal

Overview
Performance advantages
Technical Parameter
Usage scenario
success cases

Project Consultation

: Overview

The 8-inch access control facial tablet (F961) features an 8-inch IPS display with a resolution of 1280*800, capacitive touchscreen, dual-camera with fill light, built-in dual speakers, supporting voice guidance, and under-screen card swipe. It supports ISO14443A/B compliant 13.56M cards and high-security level CPU card verification with PSAM cards.

Product performance advantages

High-Performance Processor

8-Core Cortex A-53.
01
Image Processing

GPU supports up to 24-megapixel camera, adaptive exposure based on ambient light.
02
Full Functionality

Supports facial recognition and contactless card read/write.
03
High Reliability

IP66 waterproof and dustproof, can work normally in rainy conditions.
04
High Security

Product is certified by the Ministry of Public Security, meeting national security requirements.
05
Rapid Temperature Measurement

Optional support for forehead/wrist rapid testing.
06

Usage scenario

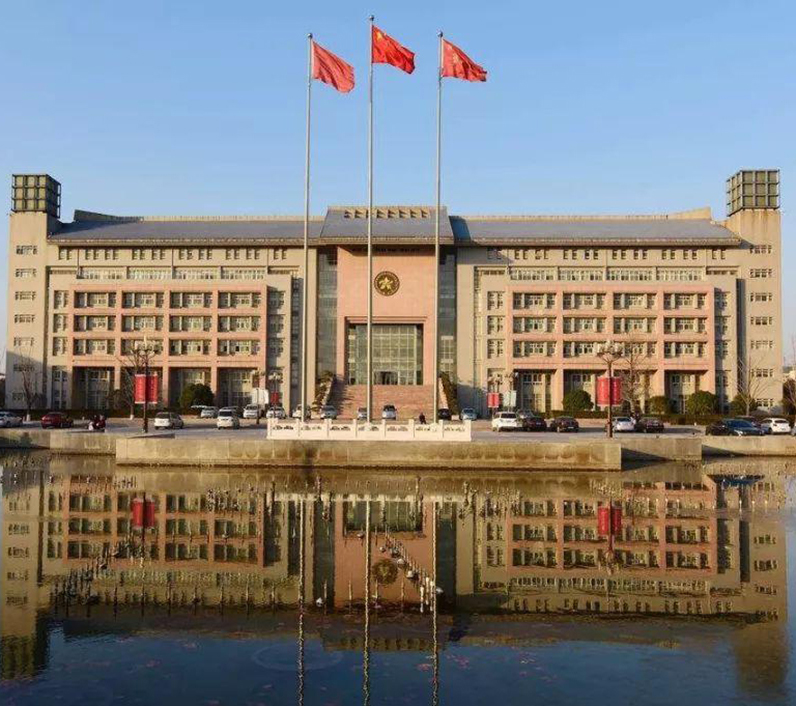

Office building
Application Scenario

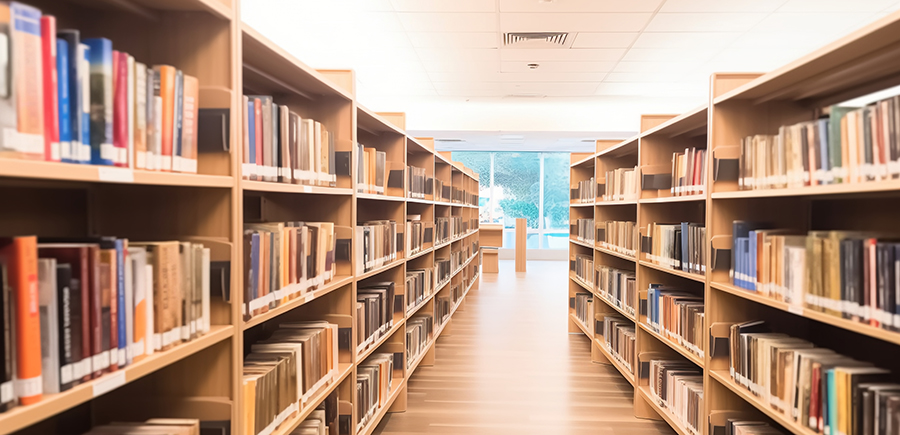

Library
Application Scenario
Dormitory
Application Scenario

Technical Parameter

Face Camera

Dual Infrared Cameras
Contactless Card Reader

Supports ISO/IEC14443 standard for M1 and CPU contactless cards, compatible with Type A/B standards
Operating Temperature

-20°C~70°C
Power Consumption

DC12, 24W.
Wireless Communication

Optional 4G
Display

Main Screen: 8 inches, 1280*800.
WiFi

Dual-frequency WiFi, IEEE802.11 a/b/g/n standard (2.4G/5G)
Storage Capacity

2GB RAM+16GB ROM

success cases
