: Overview

The scan code access card reader (F951) is a card reader for access control that supports card swiping, password input, QR code scanning, and Chinese/English display. It uses a 32-bit processor, supports RF cards complying with the TYPEA/B protocols, supports QR code recognition, and has one PSAM card slot.

Product performance advantages

Card registration

Cards can be registered on the reader, allowing password access when the card is not present.
01
Clock display

Displays the current time.
02
Supports online software updates

Program updates can be performed through the access controller or dedicated line.
03
Energy-saving mode

Enters sleep mode when not in use, with breathing light display.
04
Voice broadcast

Chinese voice prompts.
05
Different levels of verification

Card serial number, card content, card encryption.
06

Usage scenario

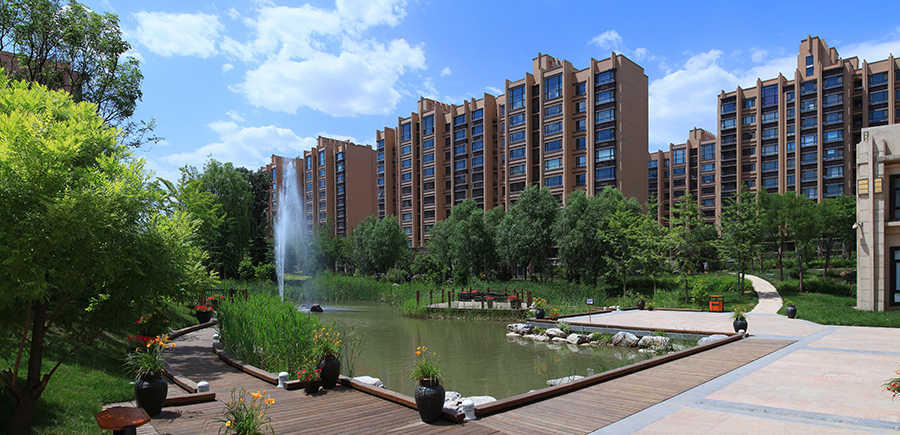

Community
Application Scenario

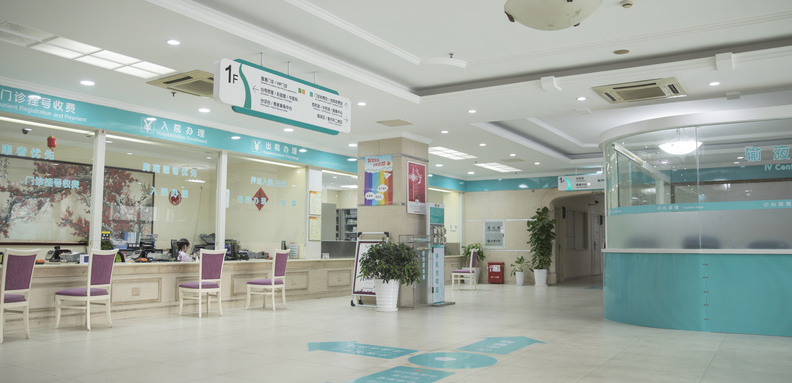

Hospital
Application Scenario
Office building
Application Scenario

Technical Parameter

SAM Card Slot

One PSAM card slot.
Audio and Visual Prompts

Buzzer, LED, screen.
Power Supply

DC12V/0.3A
Product Dimensions

132.7*82*18 (mm)
Display

2.8-inch LCD color IPS screen with a resolution of 320*240.
Camera

1 million pixels.
Contactless Card Reader

Supports ISO/IEC14443 standard for M1 and CPU contactless cards, compatible with Type A/B standards
Interfaces

WG34, UART, CAN.
